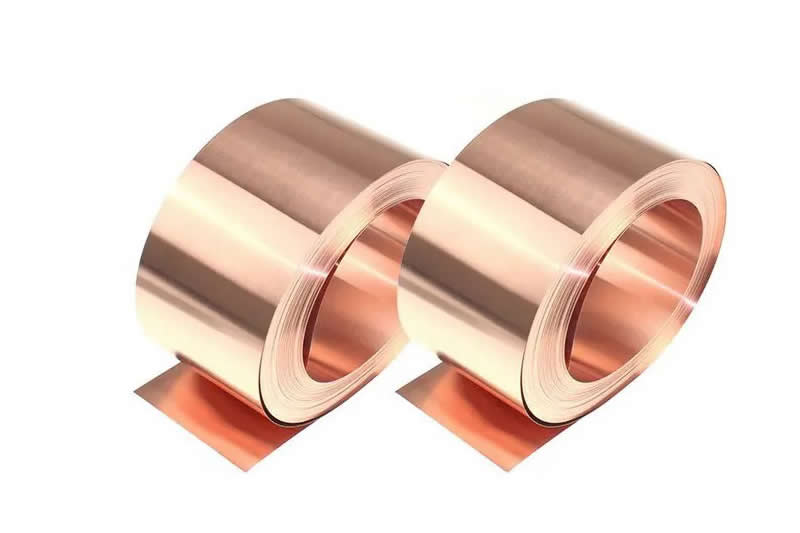

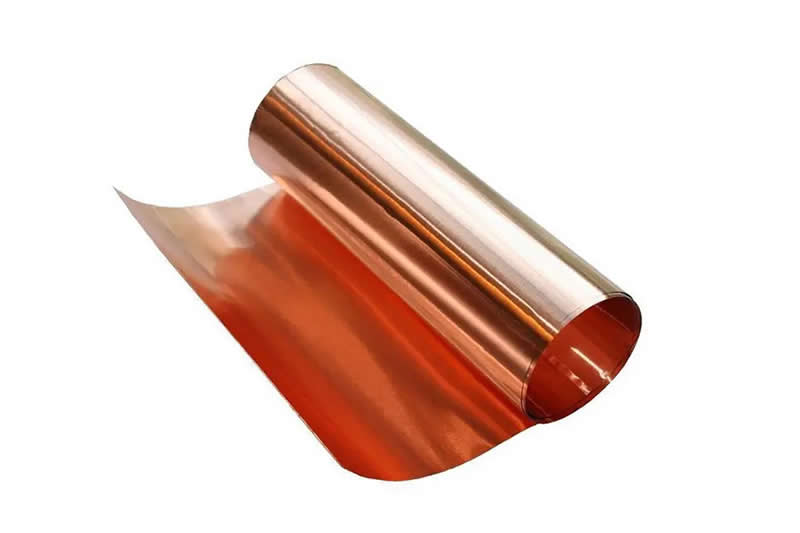

Copper Strip
- Thickness: 0.005mm-2.5mm
- Width: ≦610mm
- Coil weight: ≦3t
- Standards: UNS:C1100
EN: Cu-ETP
EUR CW004A
Chemical composition
Cu (wt. %): >99.9%
O (wt. %): 0.005-0.04
| Alloy NO. | State | Mechanical performance | |||||||
| Tensile strength (N/mm2) | Elongation (%) | Vickers hardness(HV) | |||||||
| GB | JIS | GB | JIS | GB | JIS | GB | JIS | GB | JIS |
| T2 | C1100 | M | O | ≥195 | ≥195 | ≥30 | ≥30 | ≤70 | - |
| Y4 | 1/4H | 215-275 | 215-285 | ≥25 | ≥20 | 60-90 | 55-100 | ||
| Y2 | 1/2H | 245-345 | 235-315 | ≥8 | ≥10 | 80-110 | 75-120 | ||
| Y | H | 295-380 | ≥275 | ≥3 | - | 90-120 | ≥80 | ||
| T | EH | ≥350 | - | - | - | ≥110 | - | ||
| TY | SH | - | - | - | - | - | - | ||
- Converter
- Motor
- Printed circuit board
- Switchgear products
- Railway electrification
- Electronical components
- Panel Boards
- Power Transformers
- Connectors
- Electrical Contacts
- Building & Constructions
Additional information
Minimum Order Quantity: 20kg
Delivery Time: 5-10days
Supply Ability: 500000kg/week
