Insulated Coating Resistance Wire

Introduction

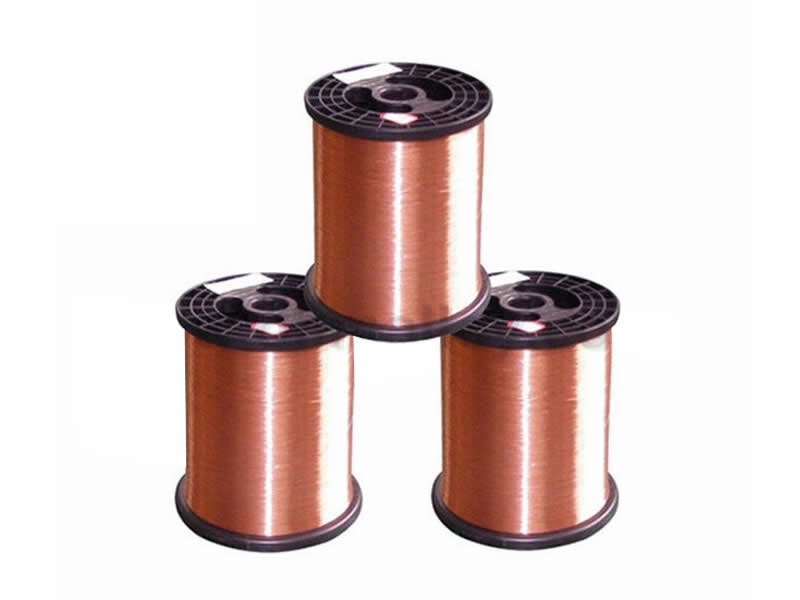

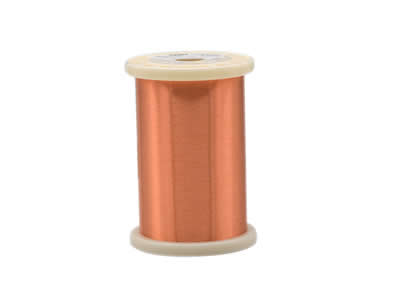

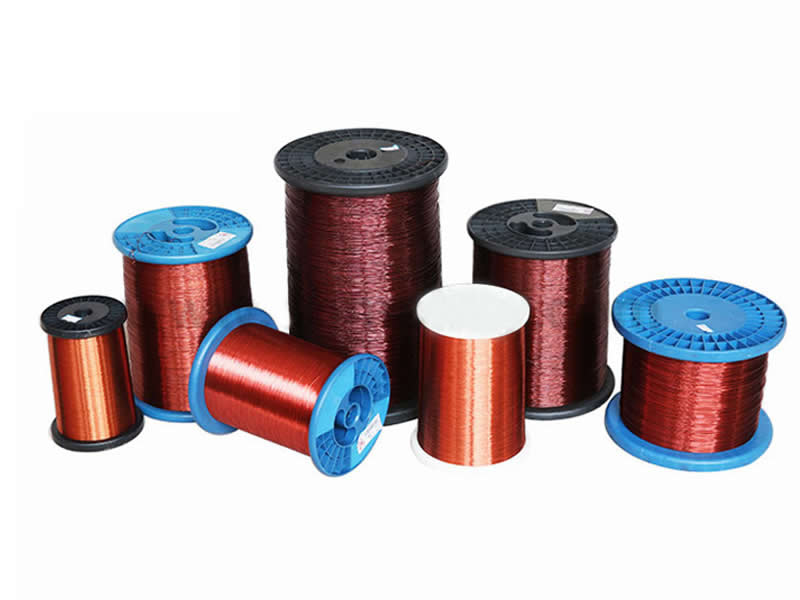

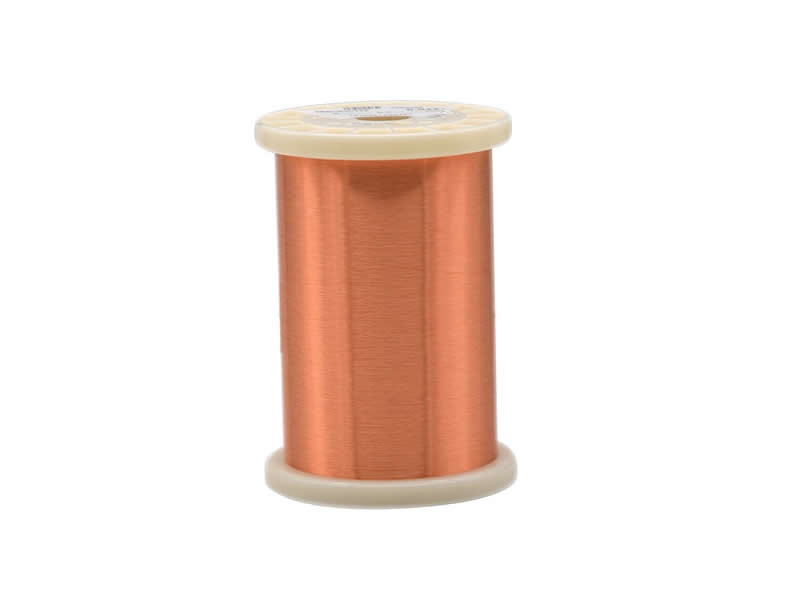

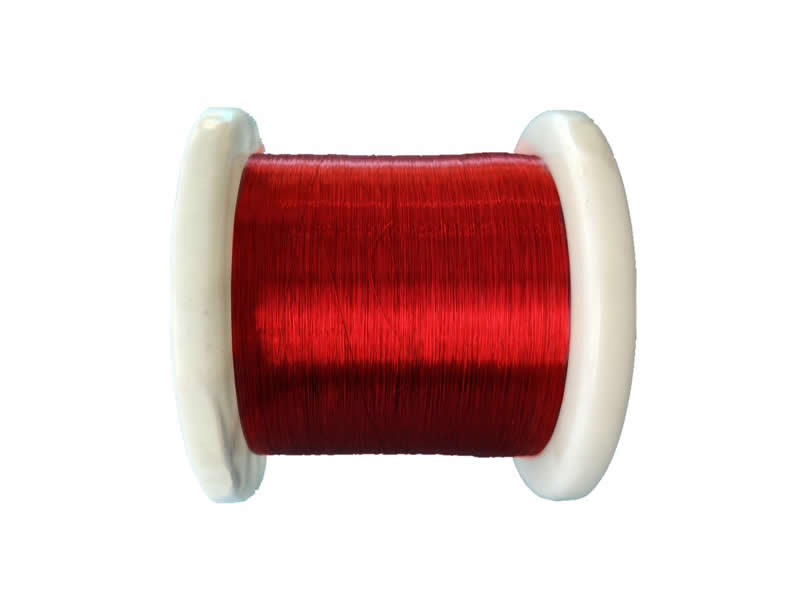

Insulated coating resistance wire is a kind of wire with insulation layer, formed by painting one or several insulating paints on the conductor surface and then being baked and cooled. This resistance wire is widely used in standard resistor, automobile parts, winding resistor, insulation treatment, etc., and commercial production, home appliances and other industries. In addition, we can also conduct enameled coating insulation on precious metal wires like silver and platinum wire.

Enameled wire type
Type Dimension
Wire D=0.018mm~3mm
Ribbon W=0.4~24 T=0.01~0.2mm
Bare alloy types
Copper-nickel alloy wire Constantan, CuNi1~CuNi44
Nickel-chromium alloy wire Ni35Cr20, Ni70Cr30, Ni60Cr15, Ni80Cr20, Ni90Cr10, Nickel-manganese alloy
Fe-chromium-aluminum alloy wire Cr13Al4, Cr21Al4, Cr21Al6, Cr23Al5, Cr25Al5, Cr21Al6Nb, Cr27Al7Mo2
Manganese-copper alloy wire CuMn12Ni2, CuMn12Ni4, Mn-Ni-Cu alloy

Insulating paint color
Red, green, yellow, black, blue and nature.

The max. outer diameter of the enameled wire and the min. insulation thickness
Nominal diameter /mm Min. insulation thickness Max. outer diameter of the enameled wire
Ⅰ Ⅱ Ⅰ Ⅱ
0.02 0.005 0.009 0.09 0.036
0.022 0.005 0.019 0.032 0.038
0.025 0.006 0.010 0.036 0.042
0.028 0.006 0.010 0.039 0.045
0.030 0.006 0.011 0.042 0.048
0.032 0.006 0.011 0.044 0.050
0.036 0.007 0.012 0.049 0.055
0.040 0.007 0.012 0.053 0.060
0.045 0.008 0.013 0.059 0.066
0.050 0.008 0.014 0.064 0.072
0.056 0.009 0.015 0.071 0.079
0.060 0.009 0.016 0.076 0.084
0.063 0.009 0.016 0.080 0.088
0.071 0.010 0.017 0.089 0.097
0.080 0.011 0.018 0.099 0.108
0.090 0.012 0.019 0.111 0.120
0.100 0.012 0.021 0.122 0.132
0.112 0.012 0.021 0.135 0.146
0.125 0.014 0.023 0.150 0.161
0.140 0.015 0.024 0.166 0.179
0.150 0.016 0.025 0.177 0.191
0.160 0.017 0.028 0.188 0.202
0.180 0.018 0.028 0.210 0.225
0.200 0.019 0.030 0.231 0.248
0.224 0.021 0.032 0.258 0.275
0.250 0.022 0.034 0.285 0.304
0.280 0.024 0.036 0.318 0.338
0.300 0.025 0.037 0.339 0.360
0.315 0.026 0.038 0.356 0.376
0.355 0.027 0.041 0.398 0.420
0.400 0.028 0.043 0.445 0.468
0.450 0.030 0.048 0.498 0.524
0.500 0.031 0.049 0.551 0.578
0.560 0.034 0.052 0.615 0.643
0.600 0.035 0.054 0.657 0.686
0.630 0.038 0.056 0.689 0.718
0.710 0.038 0.059 0.773 0.805
0.00 0.041 0.062 0.869 0.902
0.900 0.043 0.066 0.973 1.010
1.000 0.048 0.070 1.079 1.117
1.120 0.049 0.074 1.205 1.247
1.250 0.053 0.080 1.343 1.387
1.400 0.058 0.085 1.499 1.548
1.500 0.059 0.090 1.605 1.654
