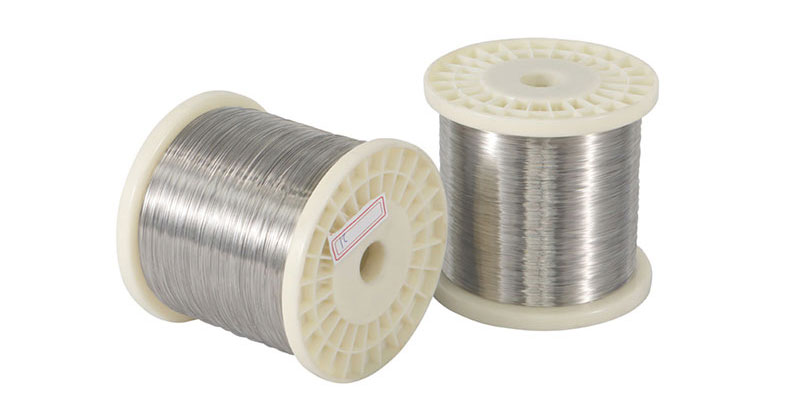

Type E Thermocouple Wire

Due to its high electromotive force (EMF) output and exceptional sensitivity, this thermocouple wire is suitable for detecting small temperature variations. It offers stable performance even at temperatures as low as 300ºC and provides strong corrosion resistance in humid environments. It’s widely used in oxidizing or inert atmospheres, it should be avoided in reducing environments or those containing sulfur compounds to maintain durability and accuracy.

Chemical composition (%)
Material Chemical composition (%)
Ni Cr Cu Mn Al
EP(Chromel) 90 10
EN(Constantan) 45   55
Physical and mechanical properties
Material Density (g/cm3) Melting point℃ Tensile strength (Mpa) Volume resistivity (μΩNaN) Elongation rate (%)
EP(Chromel) 8.5 1427 >490 70.6(20℃) >25
EN(Constantan) 8.8 1220 >390 49.0(20℃) >25
EMF value range at different temperatures
Material EMF Value vs. Platinum (μV)
100℃ 200℃ 300℃ 400℃ 500℃ 600℃ 700℃ 800℃
EP (Chromel) 2769~2859 5921~6019 9272~9374 12709~12819 16144~16282 19537~19699 22859~23043 26102~26308
EN (Constantan) 3499~3561 7389~7513 11647~11779 16109~16255 20699~20885 25362~25588 30030~30292 34664~34960
