CuNi6 Resistance Alloy
Introduction

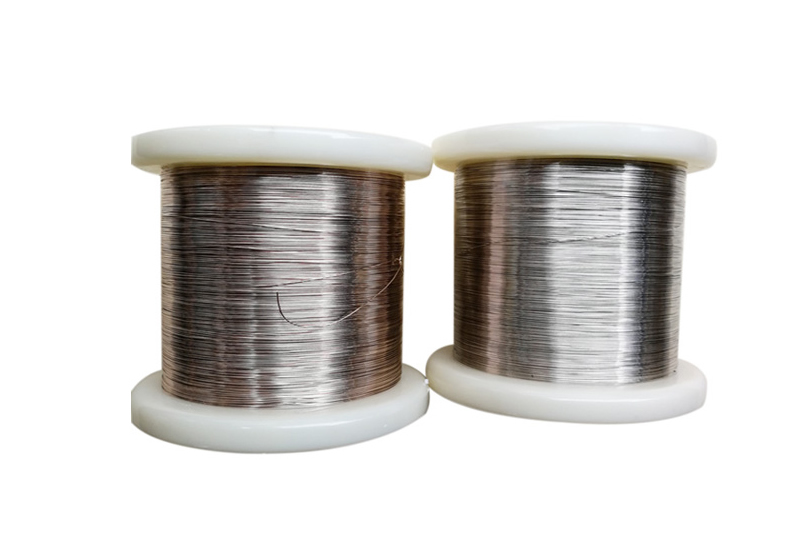

CuNi6 resistance alloy is a kind of copper nickel binary alloy with low temperature coefficient of resistance and a maximum operating temperature of 250°C. This alloy is mainly used to manufacture low voltage circuit breaker, low temperature electric blanket, thermal cutout and other low voltage electrical devices. It is also used to produce heating cable for home electric blanket.
| Type | Size | ||
| Round wire | D=0.06mm~8mm | ||
| Flat wire | W=0.4~40mm | T=0.05~2.9mm | |
| Strip | W=8~200mm | T=0.1~3.0mm | |
| Foil | W=6~120mm | T=0.005~0.1mm | |
| Rod | Dia=8~100mm | L=50~1000mm | |
| Nickel | 6 | Manganese | - |
| Copper | Balance |
| Yield strength (Mpa) | Tensile strength (Mpa) | Elongation (%) | Density (g/cm3) | Resistivity (20℃) (Ω・mm2/m) | Resistance temperature coefficient (20℃~600℃) 10-5/℃ | Conductivity (20℃) (WmK) | Electromotive force against copper (μV/℃ ) (0~100℃) | Expansion coefficient (20 ℃- 400℃) x10-6/K | Specific heat capacity (20℃) (J/g・K) | Melting point (℃) | Max.operating temperature (℃) | Magnetism |
| 110 | 250 | 25 | 8.9 | 0.1 | ＜60 | 92 | ―18 | 17.5 | 0.380 | 1095 | 220 | Non magnetic |
| Atmospheric corrosion resistance at 20℃ | Corrosion resistance at maximum operating temperature | ||||
| Air and other oxygen-containing gases | Ammonia containing gas | Sulfurous gas | Sulfurous gas | Carburization | |
| (oxidizability) | (reducibility) | ||||
| Good | Poor | Poor | Poor | Poor | Good |
Index
alloy strip, resistance wire
