CuMn12Ni4 Alloy

Introduction
Manganese copper alloy used for shunt can be used at room temperature. This alloy is characterized by low electromotive force.

Type of supply
Alloy Type Size

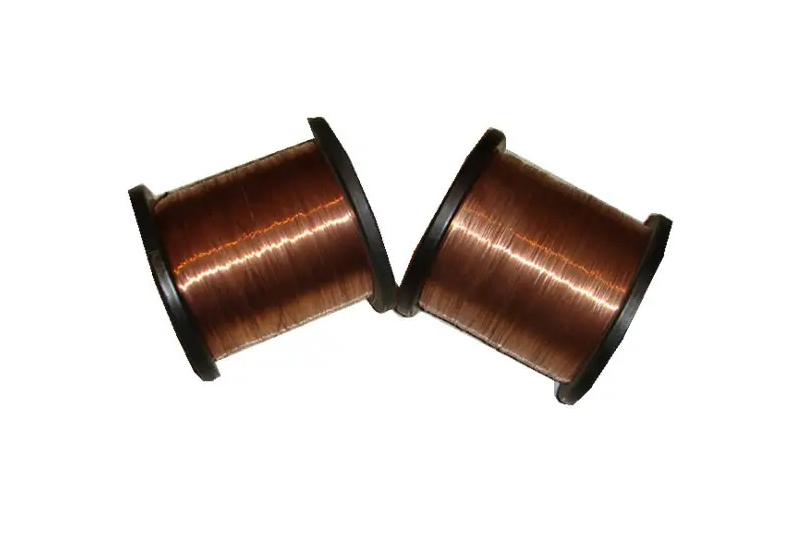

Manganin43W Round wire D=0.03mm~8mm
Manganin43R Flat wire W=0.4~40 T=0.03~2.9mm

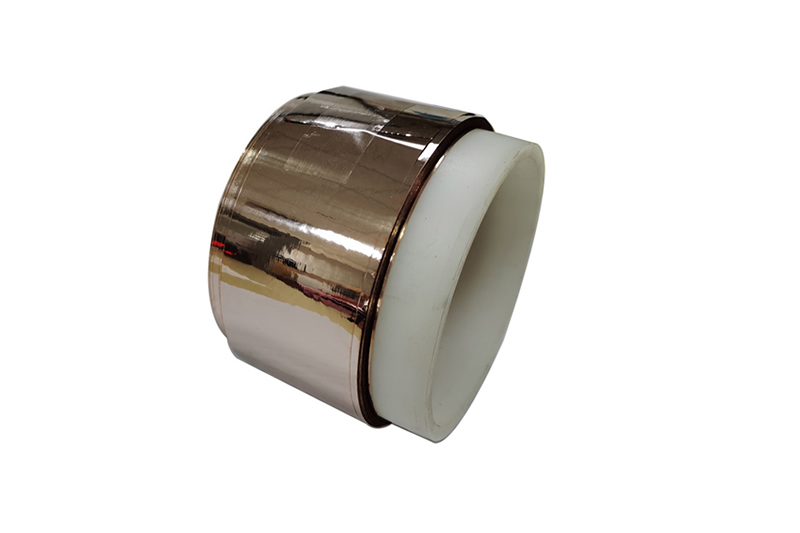

Manganin43S Strip W=8~200mm T=0.1~3.0
Manganin43F Foil W=6~120mm T=0.003~0.1
Manganin43B Rod Dia=8~100mm L=50~1000

Application
Manganese copper alloy is widely used in shunt resistor with high requirement, and built-in precision electrical element, like: electric bridge, potentiometer, etc.

Physical parameters
Yield strength (Mpa) Tensile strength (Mpa) Elongation (%) Density (g/cm3) Resistivity (20℃)
(Ω・mm2/m)
Resistance temperature coefficient (20℃~600℃)
10-5/℃
Conductivity (20℃)
(WmK)
Electromotive force against copper (μV/℃ ) (0~100℃) Expansion coefficient (20 ℃- 100℃)
x10-6/K
Expansion coefficient (20 ℃- 400℃)
x10-6/K
Expansion coefficient (20 ℃- 100℃)
x10-6/K

Melting point
(℃)
Max.operating temperature (℃) Magnetism
180 390 15 8.4 0.43 -7~40 22 <2 18 19.5 0.41 960 5~45 Non-magnetism
Corrosion resistance
Atmospheric corrosion resistance at 20℃ Corrosion resistance at maximum operating temperature
Air and other oxygen-containing gases oxygen-containing gas Sulfurous gas Sulfurous gas carburization
(oxidizability) (reducibility)
Good Poor Poor Poor Poor Good

Index
alloy strip, resistance alloy
